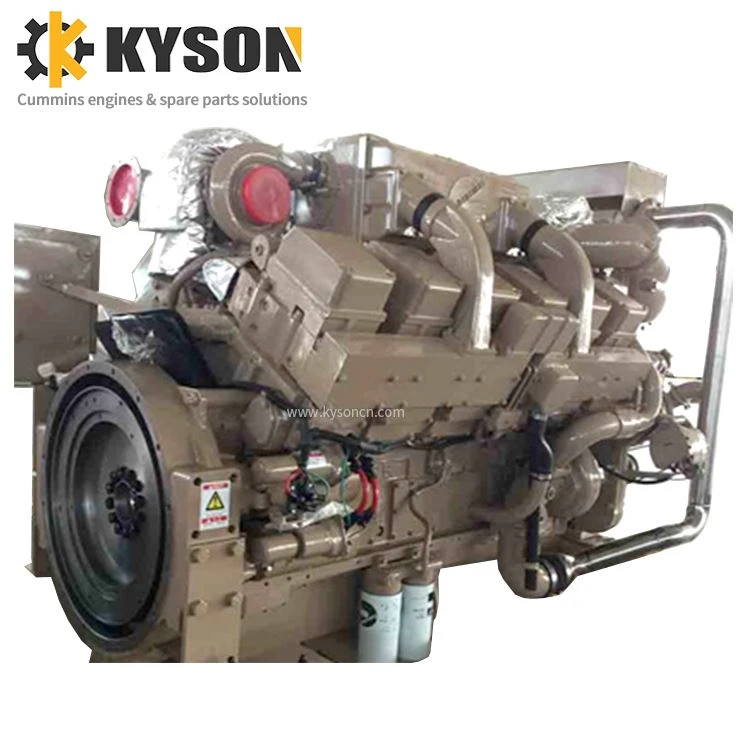

Cummins KT38-M780 Mariene voortstuwingsmotor
Type: 12 cilinder V -type, 4 slag
Beoordelingstype: continu
Verplaatsing: 38L
Boring en slag: 159 × 159 mm
Aanvraag sturen
Product Details ofCummins KT38-M780 Mariene voortstuwingsmotor
|
Algemene gegevens van Cummins KT38-M780 Marine Propulsion Engine |
|
|
Motormodus |
Cumminskt38-M780 |
|
Type |
12 cilinder V -type, 4 slag |
|
Type beoordeling |
Continu |
|
Verplaatsing |
38L |
|
Boring en beroerte |
159 × 159 mm |
|
Alleen gewicht (droog) -motine |
3606 kg |
|
Gewicht (droog) -motor met HeatExchangersystem |
4457 kg |
|
Technische gegevens van Cummins KT38-M780 Marine Propulsion Engine |
|
|
Aspiratie |
Turbolader |
|
Brandsysteem |
PT -pomp |
|
Koelvloeistofcapaciteit (alleen motor) |
119.2L |
|
Koelvloeistof naar motorwarmtewisselaar |
1513 L/min |
|
Minimale LDLE -snelheidsinstelling |
675-725 tpm |
|
Hoog LDLE -snelheidsbereik |
1962-2106 RPM |
|
Normale variatie op de ldle -snelheid |
± 25 tpm |
|
Compressieverhouding |
15.5:1 |
|
Zuigersnelheid |
9,5 m/sec |
|
Prestatiedatum van Cummins KT38-M780 Marine Propulsion Engine |
|
|
Nominale output/snelheid |
582 kW780HP/1800 tpm |
|
Piekmotor koppel/snelheid |
|
|
Rem betekent effectieve druk |
1021 kPa |
|
Brandstofverbruik/nominale snelheid |
142 L/HR |
|
Benader de brandstofstroom naar pomp |
426 L/HR |
| Cummins Marine Diesel Motor/voortstuwingsmotormodel en specificatietabel | |||||
| Motormodel | Power/Speed KW (HP) @PM | motor | Algemene afmetingen (mm) | ||
| Continue kracht | Nominale kracht | Boring * slag (mm) | Consumptie (G/KW.H) | ||
| NT855-M240 | 179(240)@1800 | 163(218)@1744 | 140*152 | 210 | 1965*952*1538 |
| NT855-M270 | 201(270@1800 | 183(245)@1744 | 140*152 | 210 | 1965*952*1538 |
| NT855-M300 | 224(300)@1800 | 203(273)@1744 | 140*152 | 210 | 1965*952*1538 |
| NT855-M350 | 261(350@1800 | 237(318)@1744 | 140*152 | 210 | 1965*952*1538 |
| NT855-M360 | 269(360)@2100 | 244(327)@2027 | 140*152 | 210 | 1965*952*1538 |
| NT855-M400 | 298(400)@2100 | 271(364)@2027 | 140*152 | 210 | 1965*952*1538 |
| KTA19-M425 | 317(425)@1800 | 288(386)@1744 | 159*159 | 207 | 2151*966*1704 |
| KTA19-M470 | 351(470@1800 | 319(427@1744 | 159*159 | 207 | 2151*966*1704 |
| KTA19-M500 | 373(500)@1800 | 339(455@1744 | 159*159 | 207 | 2151*966*1704 |
| KTA19-M550 | 410(550)@2100 | 373(500)@2027 | 159*159 | 207 | 2151*966*1704 |
| KTA19-M600 | 447(600)@1800 | 407(545@1744 | 159*159 | 207 | 2151*966*1928 |
| KTA19-M640 | 477(640)@1800 | 433(581)@1744 | 159*159 | 207 | 2151*966*1928 |
| KTA19-M700 | 522(700)@2100 | 475(636)@2027 | 159*159 | 207 | 2151*966*1928 |
| KT38-M800 | 597(800)@1800 | 543(727)@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M0 | 633(850@1800 | 575(773)@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M1 | 671(900@1600 | 610(818)@1550 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M1 | 746(1000)@1800 | 678(909)@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M1 | 820(1100)@1800中 | 746(1000)@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M2 | 895(1200)@1800 | 814(1091@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M2 | 970(1300)@1800重 | 882(1182)@1744 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M2 | 1045(1400)@1600 | 950(1272@1550 | 159*159 | 207 | 2506*1355*1909 |
| KTA38-M2 | 1194(1600)@1800 | 1085(1454)@1744 | 159*159 | 207 | 2506*1355*1909 |
